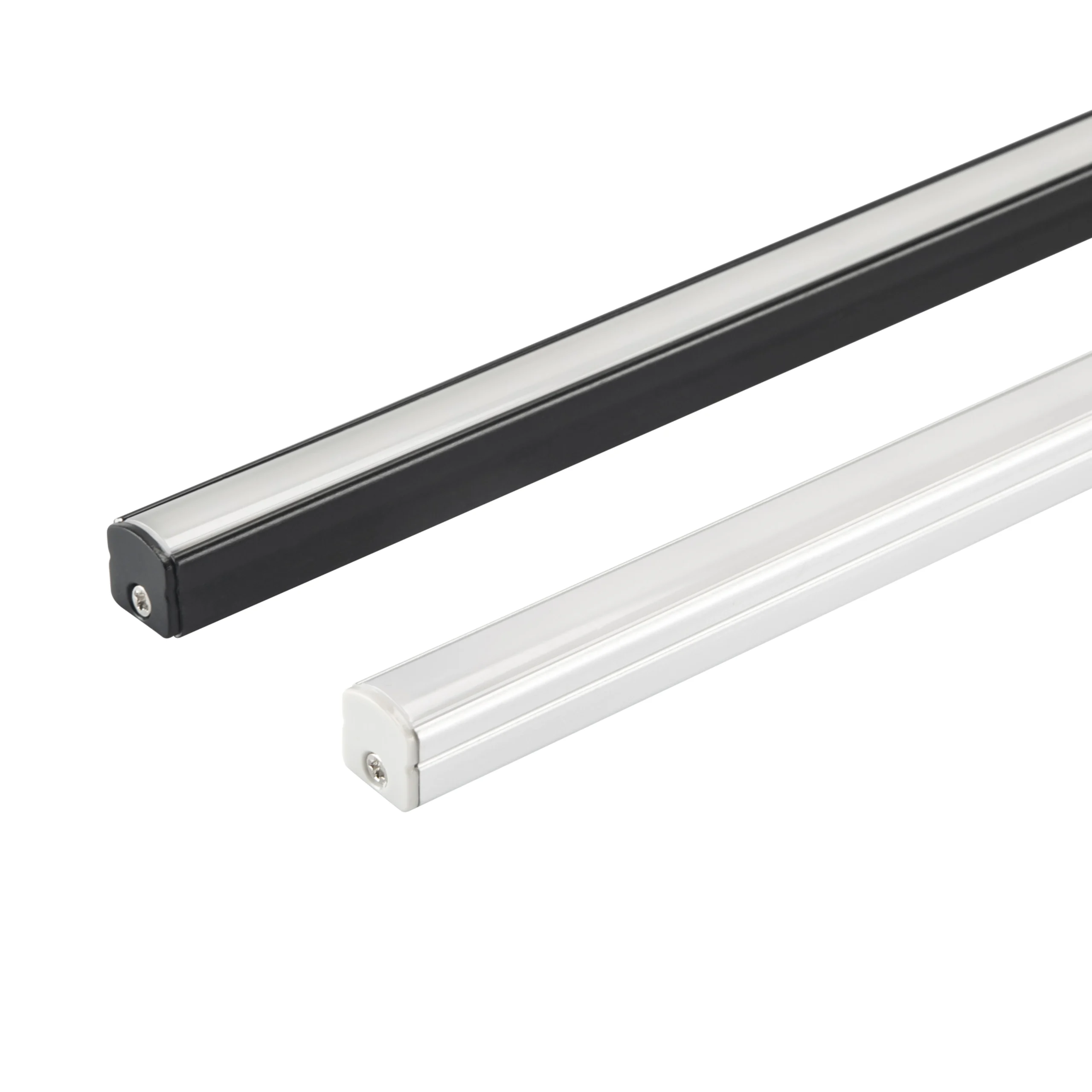

What Is the ULIGHT 1010 Magnetic LED Bar?
The ULIGHT 1010 is a slim aluminium LED bar with a 10×10mm cross-section profile. It is designed for retail gondola shelves, display cabinets, and store fixtures where the light source needs to stay hidden behind the shelf lip or fixture frame.
Unlike adhesive LED strips, the 1010 is a rigid LED bar with magnetic mounting and a defined optical cover. It connects to a low-voltage DC power track system, helping fixture manufacturers reduce exposed wiring at each shelf level.

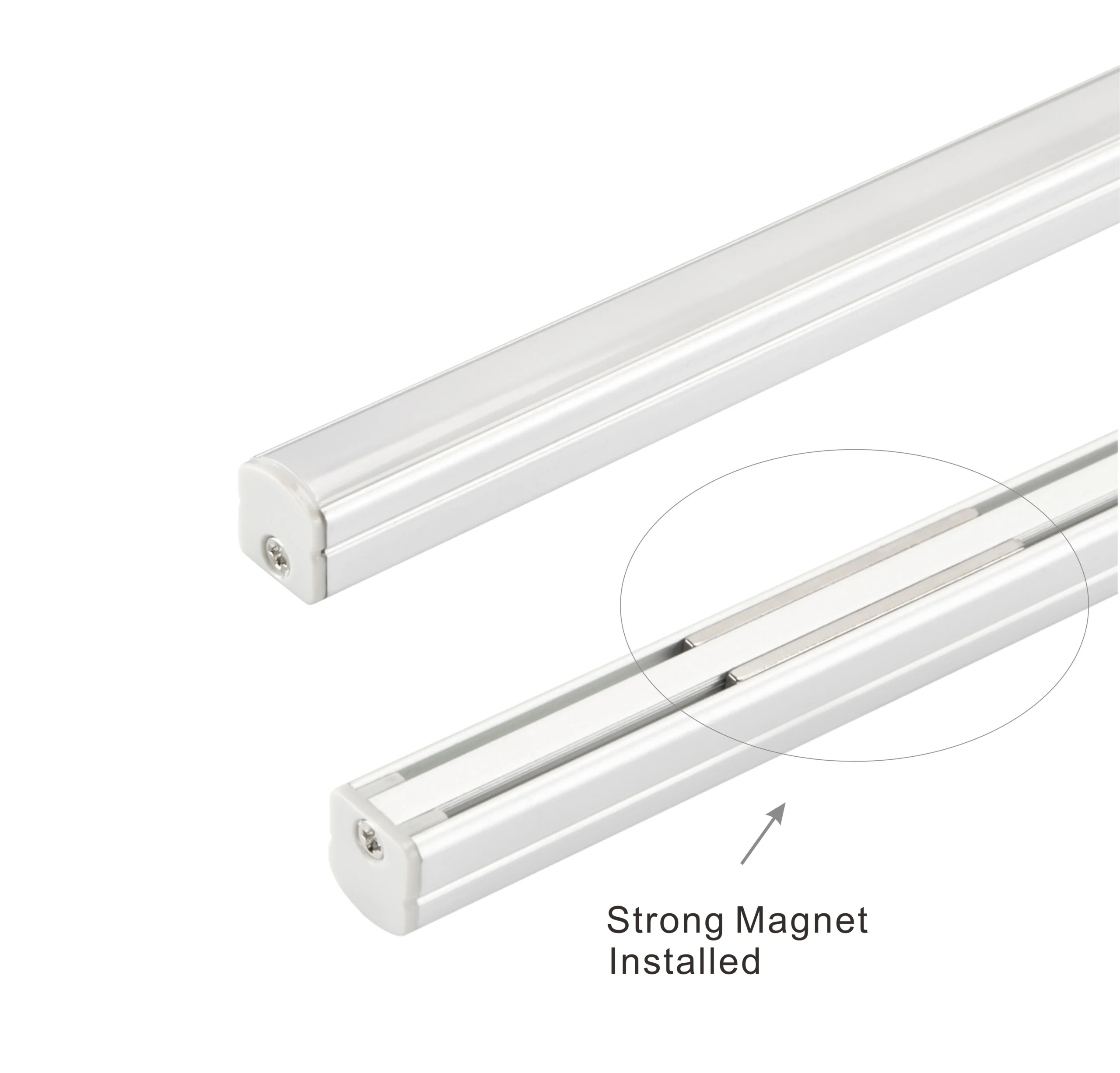

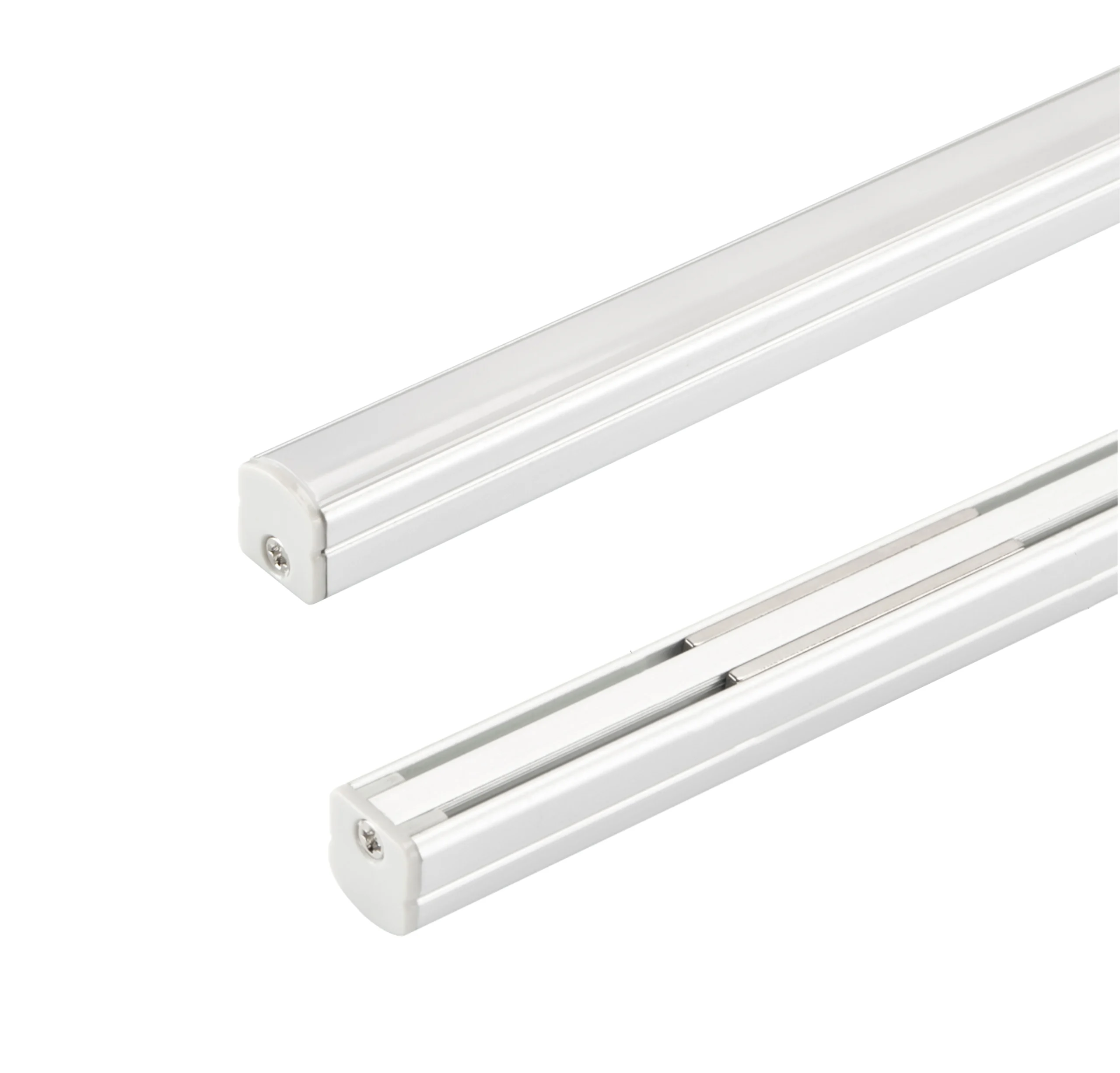

The 1010 uses built-in magnets to hold the bar in position on compatible metal surfaces or ULIGHT DC power track contact areas. The DC track supplies low-voltage power to the bar while keeping shelf-level wiring hidden inside the fixture structure.
What Problems Does It Solve for Retail Fixture Manufacturers?
Visible wiring at each shelf level slows production and increases on-site installation complexity.
Works with a DC power track so power is distributed through the fixture structure — no loose cables at each shelf level.
Limited space behind shelf lips means most LED bars are visible after installation.
The 10×10mm profile sits behind most retail shelf lips and gondola frame edges without visible protrusion.
Fixed shelf lighting cannot be repositioned when product displays or shelf layouts change.
Magnetic mounting allows bars to be removed or repositioned without tools after the initial DC track installation.
Inconsistent light colour across stores and production batches affects brand visual standards.
SDCM≤3 colour binning ensures visual consistency across batches — critical for pharmacy chains and branded retail rollouts.
Full Specifications of the ULIGHT 1010
| Parameter | Specification |
|---|---|
| Model | ULIGHT 1010 |

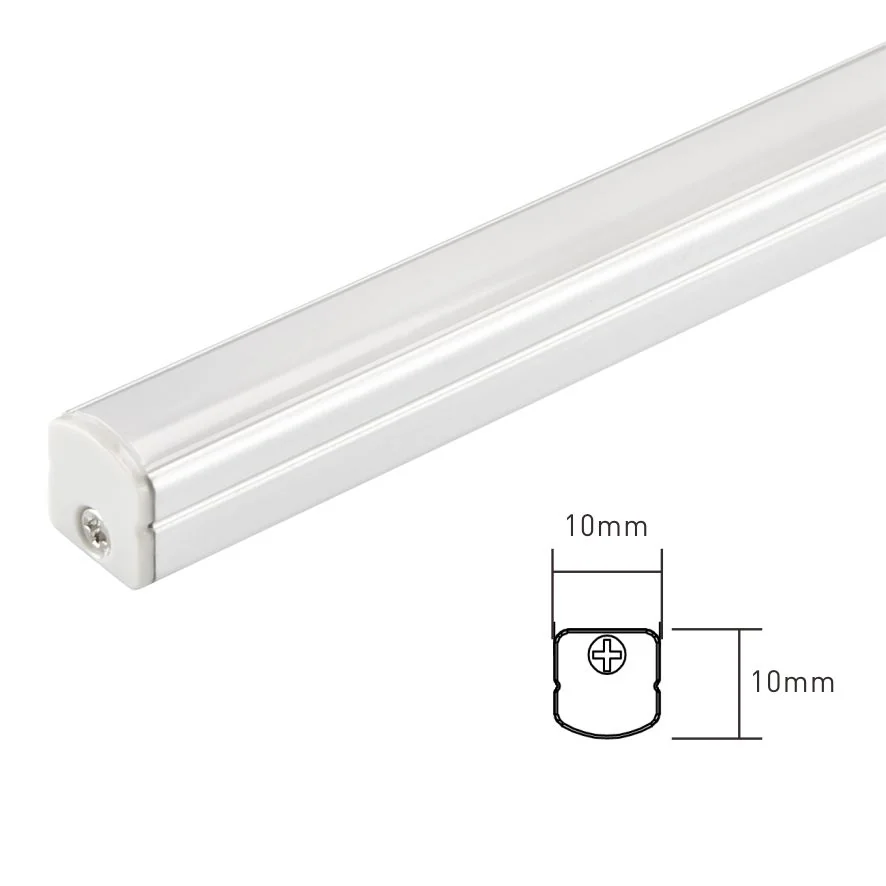

| Profile | 10×10mm |
| Input Voltage | 12V DC or 24V DC |
| Power Density | 24V: 10W/m · 12V: 11W/m |
| Standard Lengths | 250mm / 550mm / 850mm / 1150mm |
| Custom Length Range | 250mm–2500mm, cut to any required length |
| CRI Options | CRI>80 / CRI>90 / CRI>95 |
| CCT Options | 2500K / 3000K / 4000K / 5000K / 6000K |
| Colour Consistency | SDCM≤3 |
| PC Cover Options | Clear / Frosted / Opal |
| Lumen Efficiency | CRI>80: approx. 80 lm/W · CRI>90: approx. 72 lm/W |
| Mounting Method | Direct magnetic / Magnetic pad / Clip mount |
| Compatible Track | ULIGHT TB-U / TB-F / TB-R series |
| Environment | Indoor dry retail environments |
| Certifications | Confirm by model, voltage version, and destination market |
Detailed Power, Current and Lumen Output by Length
| Part No. | Length | 24V Power | 12V Power | 24V Current | 12V Current | Lumen CRI>80 | Lumen CRI>90 |
|---|---|---|---|---|---|---|---|
| 1010X-025 | 250mm | 2.5W | 2.75W | 0.10A | 0.23A | 215 lm | 178 lm |
| 1010X-055 | 550mm | 5.5W | 6.05W | 0.23A | 0.50A | 440 lm | 396 lm |
| 1010X-085 | 850mm | 8.5W | 9.35W | 0.35A | 0.78A | 680 lm | 612 lm |
| 1010X-115 | 1150mm | 12W | 13.2W | 0.50A | 1.10A | 914 lm | 821 lm |
Power calculated at 10W/m (24V) and 11W/m (12V). Current = Power ÷ Voltage. Lumen output varies by CRI selection, not by voltage. Confirm values against specification sheet before project quotation.

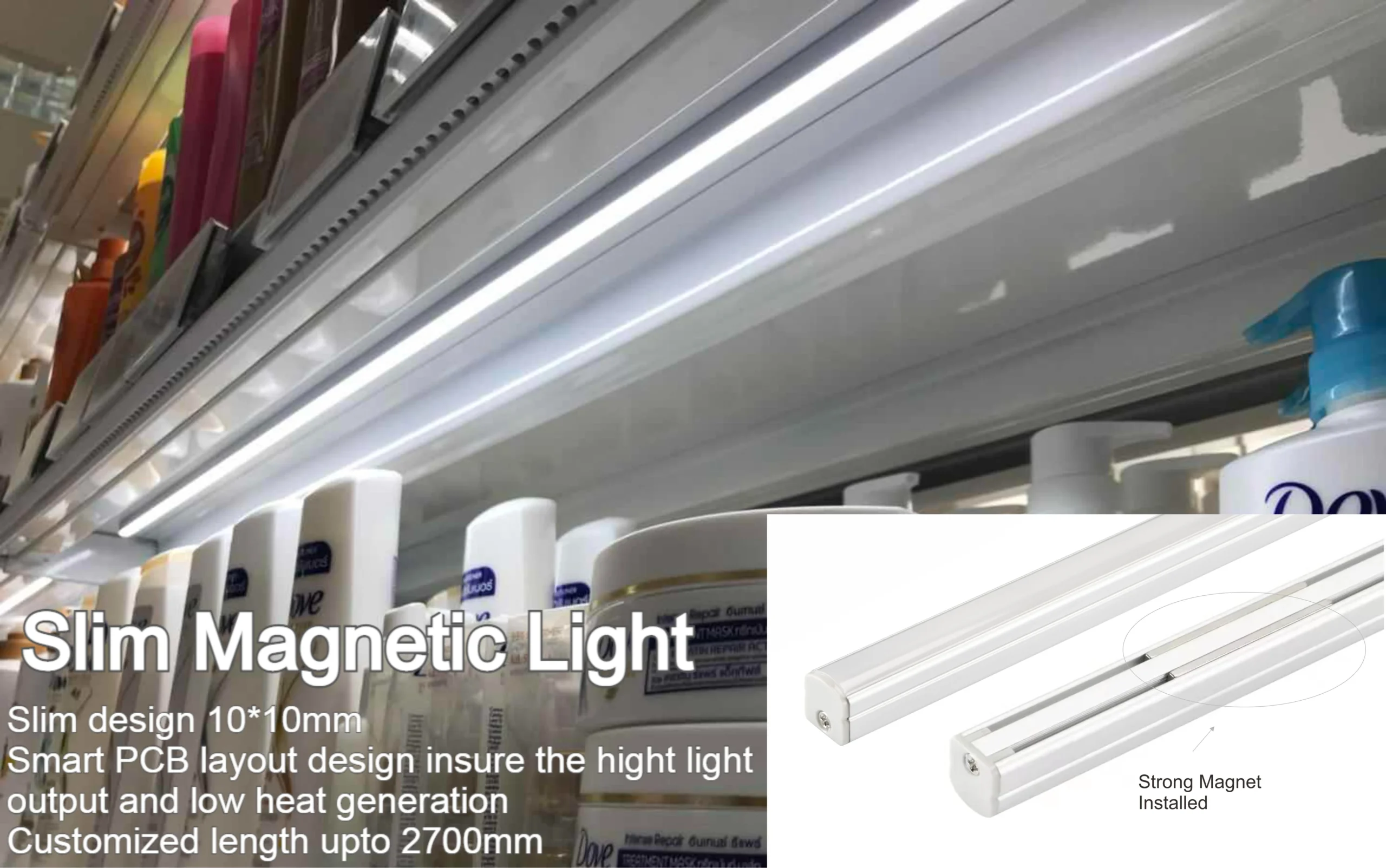

How Is the 1010 Installed on Retail Shelves?
| Shelf Material | Mounting Method | Notes |
|---|---|---|
| Metal shelf or ferromagnetic frame | Direct magnetic mounting | Contact surface must be ferromagnetic and flat for stable hold |
| Glass shelf | Magnetic pad accessory | Pad selected based on glass thickness, shelf size, and layout |
| Wooden shelf / MDF / non-metallic surface | Clip mount | Used when direct magnetic attachment is not possible |
| Custom gondola frame | DC power track integration | Standard approach for OEM fixture production |
Many shelf-level installations avoid visible screws or drilling, but the final method depends on shelf material, track type, and fixture structure.
Installation Configuration Examples
Example 1: 5-shelf gondola (supermarket / pharmacy)
| Parameter | 24V | 12V |
|---|---|---|
| Gondola size | 1500mm × 900mm | 1500mm × 900mm |
| Shelf levels | 5 | 5 |
| LED bar | 1010 × 850mm × 5 bars | 1010 × 850mm × 5 bars |
| Power per bar | 8.5W | 9.35W |
| Total load | 42.5W | 46.75W |
| Minimum driver output | 53.1W | 58.4W |
| Recommended driver | 60W or above | 60W or above |
Example 2: 4-shelf gondola (brand store / premium display)
| Parameter | 24V | 12V |
|---|---|---|
| Gondola size | 1500mm × 900mm | 1500mm × 900mm |
| Shelf levels | 4 | 4 |
| LED bar | 1010 × 850mm × 4 bars | 1010 × 850mm × 4 bars |
| Power per bar | 8.5W | 9.35W |
| Total load | 34W | 37.4W |
| Minimum driver output | 42.5W | 46.75W |
| Recommended driver | 45W or above | 50W or above |
Driver selection rule: Total load ÷ 0.8 = minimum driver output required. Select the nearest standard driver size at or above that figure. A driver running at full rated capacity continuously will shorten its service life. For the 5-shelf configuration, both 24V and 12V versions can use a single 60W driver.
How Does the 1010 Connect to a DC Power Track?
The 1010 works with ULIGHT DC power track systems. The track is installed inside the shelf frame or fixture structure during production or retrofit. The driver supplies low-voltage DC power to the track, and the LED bar receives power through the track contact area.
- Install the DC power track inside the fixture structure
- Connect a compatible 12V or 24V driver to the track input
- Confirm voltage, polarity, and total circuit load before connecting bars
- Place the 1010 bar at the required shelf position. The magnets hold the bar against the track contact area, and the electrical contacts complete the low-voltage circuit.
- Reposition or replace bars as needed within the track layout
| Track | Profile | Rated Load | Best For |
|---|---|---|---|
| TB-U | 20×6mm | 15A | New gondola builds, standard frame depth |
| TB-F | 25.8×2mm | 8A | Retrofit or slim exposed track installations |
| TB-R2 / TB-R3 | Recessed | Project-based | Flush-mount in custom furniture or display fixtures |
What Are the Customization Options?
| Option | Available Choices |
|---|---|
| Length | Project-based custom lengths from 250mm to 2500mm |
| CRI | CRI>80 / CRI>90 / CRI>95 |
| CCT | 2500K / 3000K / 4000K / 5000K / 6000K |
| PC Cover | Clear / Frosted / Opal |
| Voltage | 12V DC / 24V DC |
| Body Colour | Confirm by project requirement and quantity |
| Mounting Accessories | Magnetic pad / clip / track-compatible layout |
Sample lead time: 3–5 working days after specifications confirmed. Bulk production lead time confirmed based on specification, quantity, and accessory requirements.
Which Projects Is the 1010 Best For?
| Application | Why the 1010 Fits |
|---|---|
| Retail gondola shelves (supermarket, pharmacy, brand store) | 10×10mm profile hides behind shelf lips; magnetic repositioning suits frequent layout changes |
| Pharmacy shelf displays | CRI>90 improves colour rendering for product packaging and labelling |
| Cosmetics and beauty displays | CRI>95 option available for accurate colour presentation |
| Display cabinets and showcases | Hidden profile keeps light source concealed inside fixture frame |
| Shop fit-out and renovation projects | Magnetic mounting and DC track system reduces visible wiring |
| OEM fixture production | Custom lengths and SDCM≤3 consistency support repeatable production for chain rollouts |
| Custom furniture and cabinet integration | Clip mount supports wooden and non-metallic surfaces |
For retail chain rollouts: SDCM≤3 colour consistency ensures all bars across different stores and production batches produce visually consistent light — a key requirement for pharmacy chains, branded fashion stores, and cosmetics retailers with standardised visual merchandising.
When Should You Choose a Different Model Instead?
- Glare control is the priority — the 1310 uses a 30° beam angle for shelf-front lighting where light must focus on products without causing shopper discomfort. Profile is 13×10mm
- Heat output is a concern — the 1108 (max 7W, 11×8mm) is better for wine cabinets, sensitive pharmacy displays, and temperature-sensitive applications
- Higher brightness is needed — the 2511 (5W–25W, 25×11mm) suits large-format retail fixtures and high-brightness shelf applications
- Ultra-slim profile is required — the 1705 (17×5mm) is the thinnest model in the ULIGHT range for furniture or cabinet integration
- AC direct connection is needed — the 1709 supports AC100–120V for projects in Japan, the US, and other 100–120V markets
What Certifications Does the 1010 Carry?
Certification availability depends on the selected model configuration, voltage version, and destination market. ULIGHT provides compliance documents for confirmed sample or project orders.
| Certification | Market |
|---|---|
| CE | European markets |
| RoHS | European markets |
| cETL | United States and Canada |
| CB | International |
Specific test reports and compliance paperwork available upon request based on destination market and order confirmation.
Frequently Asked Questions
The ULIGHT 1010 is a 10×10mm slim aluminium LED bar for hidden retail shelf, gondola, and display cabinet lighting. It uses magnetic mounting and connects with a low-voltage DC power track to reduce visible wiring at shelf level.
The 1010 is available in 12V DC and 24V DC versions. Voltage must be confirmed before order — the LED bar, driver, dimmer, and DC track must all match the selected voltage.
Both versions use the same LED bar profile and mounting system. The 12V version runs at 11W/m and the 24V version at 10W/m, so the 12V version draws slightly more power for the same length. Driver, dimmer, and track selection must match the chosen voltage.
Standard lengths are 250mm, 550mm, 850mm, and 1150mm. Custom lengths are available from 250mm to 2500mm for project-based orders.
Yes, with a magnetic pad accessory. Direct magnetism through glass is not sufficient. The pad is selected based on glass thickness, shelf size, and installation layout.
Yes, with clip mount accessories. Wooden and MDF shelves require clip mounting because magnets cannot attach directly to non-metallic surfaces.
Many shelf-level installations avoid visible screws or drilling on compatible metal fixtures. However, DC track installation, clip mounting, or retrofit layouts may require mechanical fixing depending on the fixture structure.
Add up the wattage of all bars on one circuit, then divide by 0.8 to calculate the minimum driver output. For example, five 850mm 24V bars at 8.5W each total 42.5W — a 60W driver is recommended. Select the nearest standard driver size at or above the calculated minimum.
Yes. The 1010 supports dimming when connected to a compatible external dimmer or dimmable driver. Common protocols include 0–10V and PWM. Dimming must be specified at the driver selection stage.
The 1010 works with ULIGHT TB-U, TB-F, and TB-R series tracks depending on shelf structure and installation depth. Compatibility with third-party tracks should be confirmed before installation.
Confirm voltage, polarity, driver capacity, track rated load, and total circuit wattage. Total load should stay within 80% of the driver’s rated output.
The standard 1010 is designed for indoor dry retail environments. If your project requires IP65 or higher protection, confirm waterproof requirements with ULIGHT before product selection.
The 1010 uses LEDs binned to SDCM≤3. Colour variation between bars — including bars from different production batches — stays within a tolerance that is visually consistent under normal retail conditions. This is important for chain retail rollouts where multiple stores must produce the same lighting appearance.
CRI>95 is recommended where colour accuracy matters — cosmetics counters, jewellery displays, fashion retail, and premium product presentation. For general retail shelves, CRI>90 is the standard recommendation.
Choose the 1310 when glare control is the priority. The 1310 has a 13×10mm profile with a 30° beam angle, designed for shelf-front lighting at shopper eye level where direct glare must be minimised.
No fixed MOQ for samples. Sample lead time is typically 3–5 working days after specifications confirmed. Bulk orders handled on a project basis with no fixed MOQ.
Request a Sample or Get a Quote
Send us your shelf drawing, shelf material, target length, voltage, CRI, CCT, and installation environment. ULIGHT can confirm the right LED bar, DC power track, driver, and mounting accessories for your project.
